What is a SlurryBag?
A slurry bag is a self supporting tank also referred to as a pillow or bladder tank that are used for storage of products such as slurry, dirty and potable water, effluents, fertiliser, fuel, digestate and are ideal as a permanent or temporary storage solution and can be supplied in sizes ranging from 1 to 2500m³.
We are the only company who can supply a fully self supporting tank up to 2500m³ without groundworks or deep excavation.
The slurry bags are made of a high grade woven polyester fabric with a PVC coating, they are resistant to UV and have a high stability at a range of pH’s and are anti fungal and come with a fully manufacturer backed guarantee of 10 years. All our tanks have a life expectancy of greater than 20 years with basic maintenance and meet the SSAFO regulations.
Slurrybag Videos
Why not take a look at our videos below, they show our 20m3 demo bag being set out and filled with water
We will be making more videos this year covering set up and even repair. If there is a video or “How-to” guide you would like or if you just want to know a bit more about our slurrybags and how they can help you with your storage situation, please get in touch.
Setting up

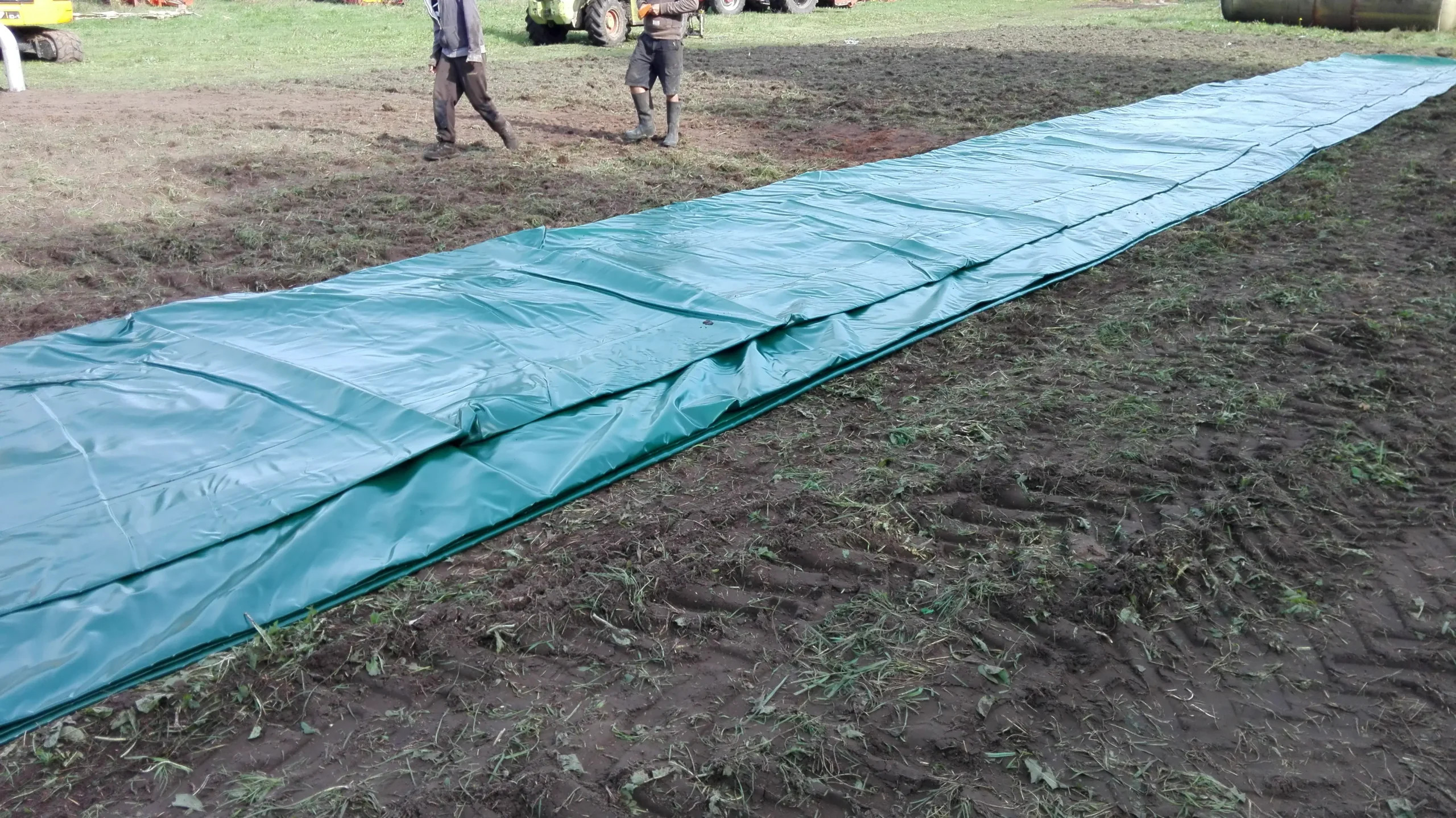

In this video you will see our 20m3 demo bag being rolled out and set up ready to fill. All our bags are set up in the the same way, only the size of the bag changes and the number of people you will need to roll them out.
Filled
In this video you will see our 20m3 demo bag filled with water
Installation

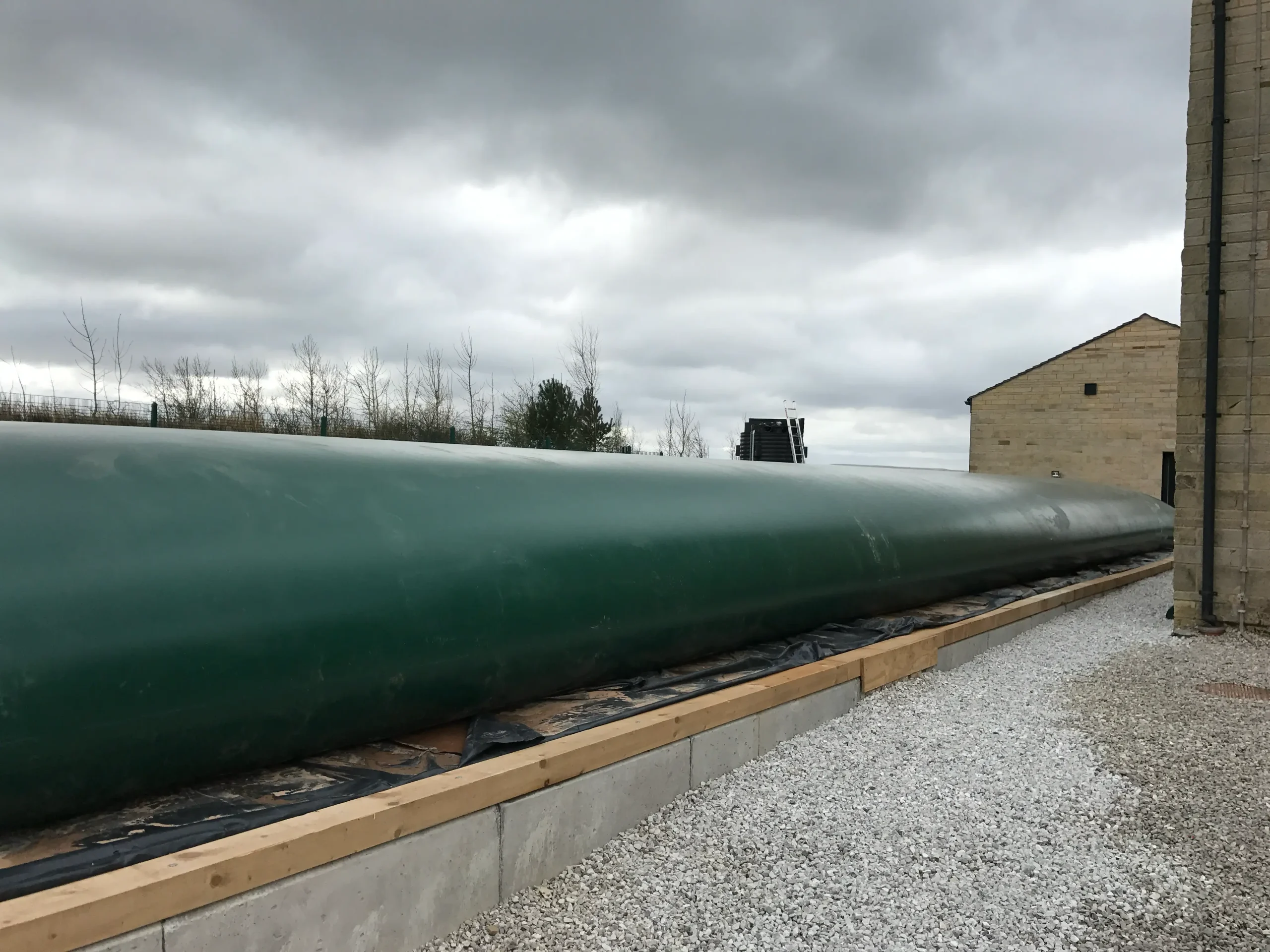

Two 500m3 slurrybags with underground connections being installed.

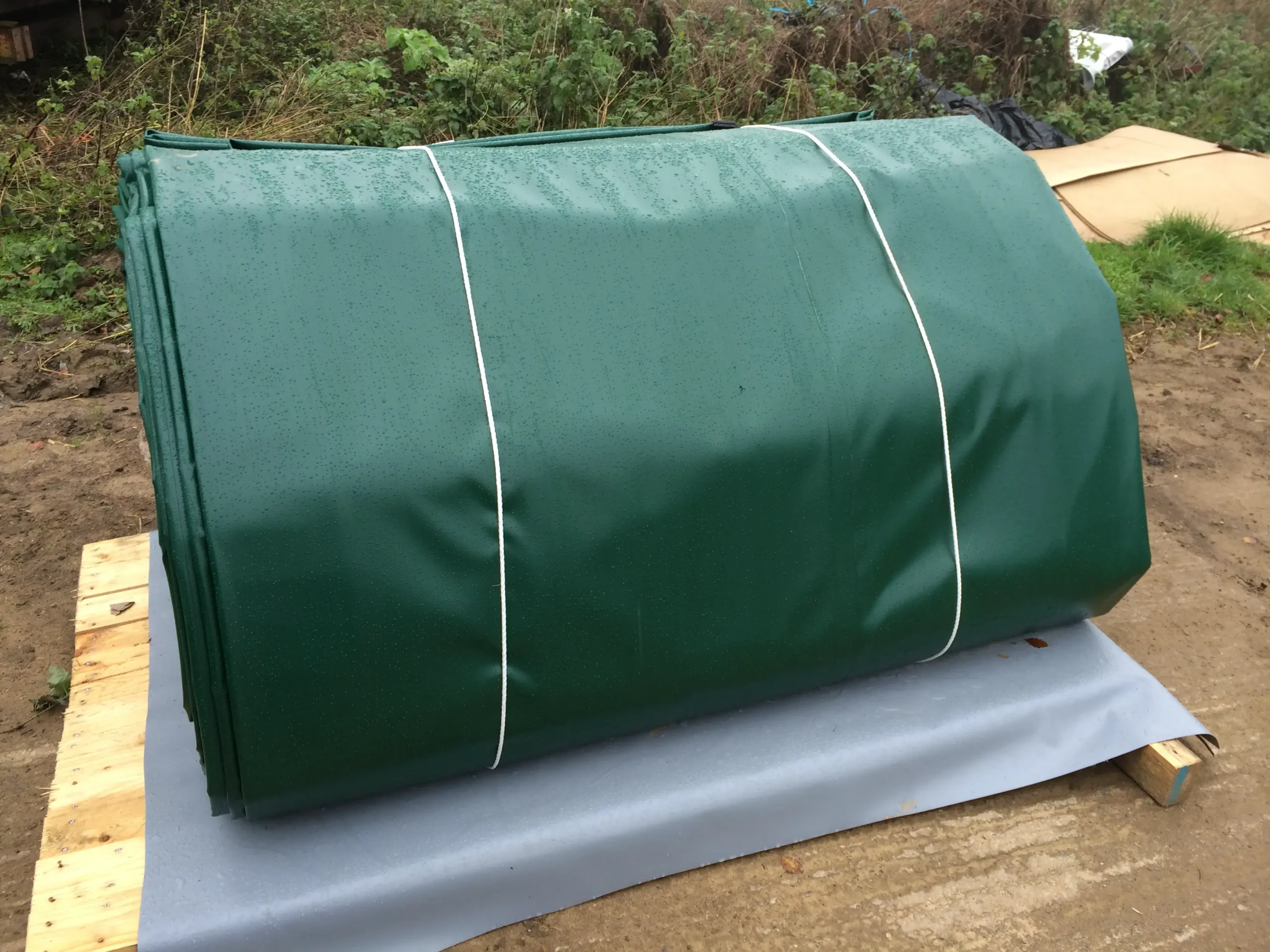

Roll up bags

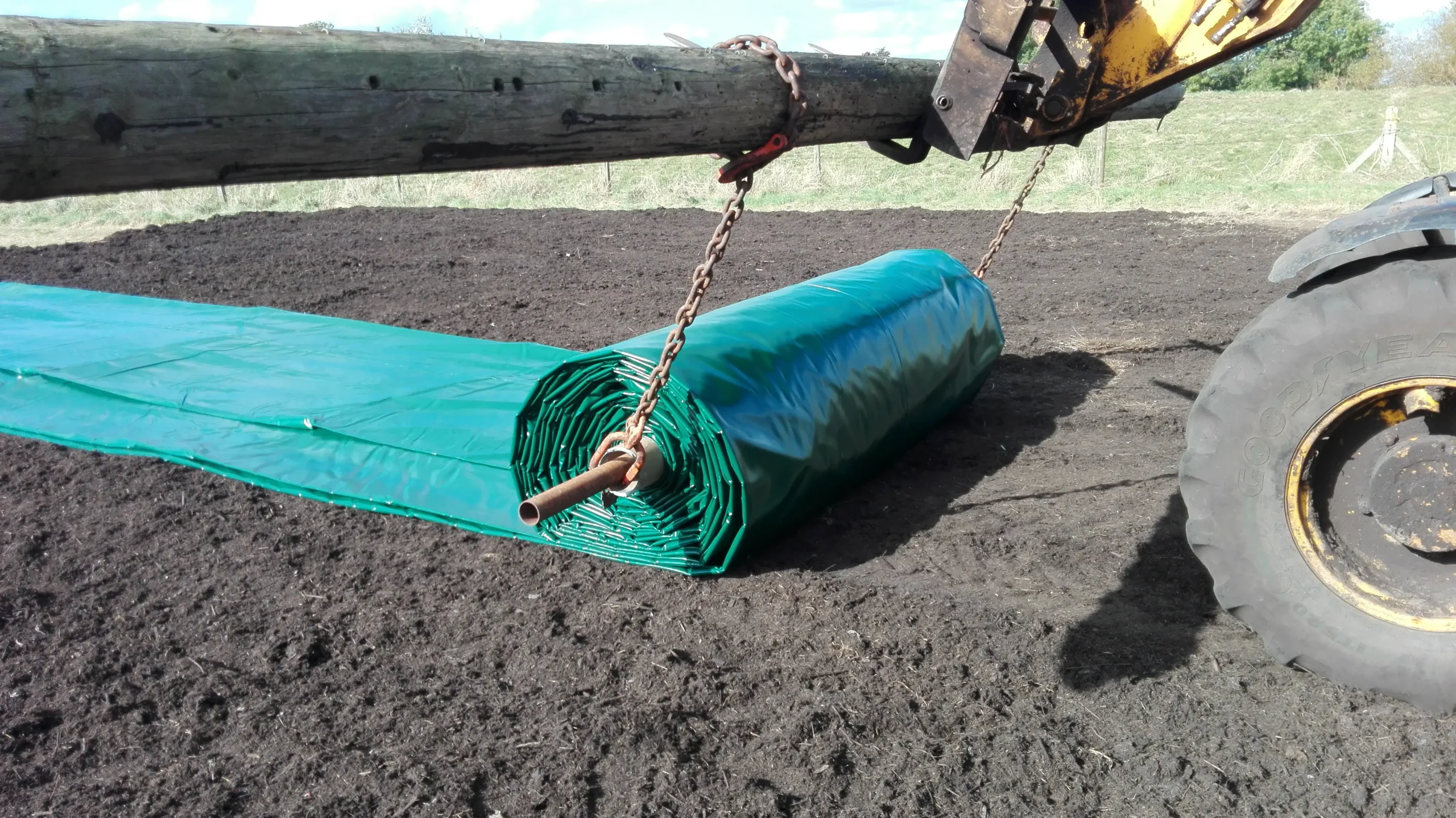

Roll up bags now available to buy or hire as well as rolling up machinery and spools, we have a wide range of options for slurry storage permanent or temporary, sales or hire up to 2500m3 fully self supporting.
Downloads
Slurrybag Dimensions
Please select from the size range below to find out what dimensions our bags are.
From 1m³ to 99m³
| Volume | Length | Width | Height |
| 1 m3 | 2.47 m | 1.48 m | 0.50 m |
| 2 m3 | 2.52 m | 2.19 m | 0.60 m |
| 3 m3 | 3.71 m | 2.19 m | 0.60 m |
| 4 m3 | 4.43 m | 2.19 m | 0.65 m |
| 5 m3 | 3.55 m | 2.96 m | 0.75 m |
| 6 m3 | 4.00 m | 2.96 m | 0.80 m |
| 7 m3 | 4.59 m | 2.96 m | 0.85 m |
| 8 m3 | 4.94 m | 2.96 m | 0.85 m |
| 9 m3 | 5.25 m | 2.96 m | 0.90 m |
| 10 m3 | 5.83 m | 2.96 m | 0.90 m |
| 12 m3 | 5.05 m | 3.69 m | 1.00 m |
| 15 m3 | 4.77 m | 4.44 m | 1.10 m |
| 20 m3 | 5.83 m | 4.44 m | 1.20 m |
| 25 m3 | 6.63 m | 4.44 m | 1.30 m |
| 30 m3 | 7.95 m | 4.44 m | 1.30 m |
| 35 m3 | 6.37 m | 5.92 m | 1.40 m |
| 40 m3 | 7.02 m | 5.92 m | 1.45 m |
| 45 m3 | 7.79 m | 5.92 m | 1.45 m |
| 50 m3 | 8.53 m | 5.92 m | 1.45 m |
| 55 m3 | 9.50 m | 5.92 m | 1.50 m |
| 60 m3 | 8.08 m | 7.40 m | 1.50 m |
| 70 m3 | 9.22 m | 7.40 m | 1.50 m |
| 80 m3 | 10.35 m | 7.40 m | 1.50 m |
| 90 m3 | 8.97 m | 8.88 m | 1.60 m |
From 100m³ to 299m³
| Volume | Length | Width | Height |
| 100 m3 | 9.83 m | 8.88 m | 1.60 m |
| 110 m3 | 10.92 m | 8.88 m | 1.60 m |
| 120 m3 | 11.70 m | 8.88 m | 1.60 m |
| 130 m3 | 12.40 m | 8.88 m | 1.60 m |
| 140 m3 | 13.25 m | 8.88 m | 1.60 m |
| 150 m3 | 14.10 m | 8.88 m | 1.60 m |
| 160 m3 | 14.96 m | 8.88 m | 1.60 m |
| 170 m3 | 15.81 m | 8.88 m | 1.60 m |
| 180 m3 | 14.17 m | 10.36 m | 1.60 m |
| 190 m3 | 14.87 m | 10.36 m | 1.60 m |
| 200 m3 | 15.59 m | 10.36 m | 1.60 m |
| 210 m3 | 16.31 m | 10.36 m | 1.60 m |
| 220 m3 | 17.02 m | 10.36 m | 1.60 m |
| 230 m3 | 17.74 m | 10.36 m | 1.60 m |
| 240 m3 | 16.05 m | 11.84 m | 1.60 m |
| 250 m3 | 16.66 m | 11.84 m | 1.60 m |
| 260 m3 | 17.28 m | 11.84 m | 1.60 m |
| 270 m3 | 17.89 m | 11.84 m | 1.60 m |
| 280 m3 | 18.51 m | 11.84 m | 1.60 m |
| 290 m3 | 19.12 m | 11.84 m | 1.60 m |
From 300m³ to 499m³
| Volume | Length | Width | Height |
| 300 m3 | 17.47 m | 13.32 m | 1.60 m |
| 310 m3 | 18.01 m | 13.32 m | 1.60 m |
| 320 m3 | 18.55 m | 13.32 m | 1.60 m |
| 330 m3 | 19.09 m | 13.32 m | 1.60 m |
| 340 m3 | 19.63 m | 13.32 m | 1.60 m |
| 350 m3 | 20.17 m | 13.32 m | 1.60 m |
| 360 m3 | 18.58 m | 14.80 m | 1.60 m |
| 370 m3 | 19.06 m | 14.80 m | 1.60 m |
| 380 m3 | 19.54 m | 14.80 m | 1.60 m |
| 390 m3 | 20.02 m | 14.80 m | 1.60 m |
| 400 m3 | 20.50 m | 14.80 m | 1.60 m |
| 410 m3 | 20.98 m | 14.80 m | 1.60 m |
| 420 m3 | 21.46 m | 14.80 m | 1.60 m |
| 430 m3 | 21.94 m | 14.80 m | 1.60 m |
| 440 m3 | 22.42 m | 14.80 m | 1.60 m |
| 450 m3 | 22.90 m | 14.80 m | 1.60 m |
| 460 m3 | 21.20 m | 16.28 m | 1.60 m |
| 470 m3 | 21.64 m | 16.28 m | 1.60 m |
| 480 m3 | 22.07 m | 16.28 m | 1.60 m |
| 490 m3 | 22.50 m | 16.28 m | 1.60 m |
From 500m³ to 699m³
| Volume | Length | Width | Height |
| 500 m3 | 22.94 m | 16.28 m | 1.60 m |
| 510 m3 | 23.37 m | 16.28 m | 1.60 m |
| 520 m3 | 23.80 m | 16.28 m | 1.60 m |
| 530 m3 | 24.24 m | 16.28 m | 1.60 m |
| 540 m3 | 24.67 m | 16.28 m | 1.60 m |
| 550 m3 | 25.10 m | 16.28 m | 1.60 m |
| 560 m3 | 25.53 m | 16.28 m | 1.60 m |
| 570 m3 | 25.97 m | 16.28 m | 1.60 m |
| 580 m3 | 24.15 m | 17.76 m | 1.60 m |
| 590 m3 | 24.54 m | 17.76 m | 1.60 m |
| 600 m3 | 24.93 m | 17.76 m | 1.60 m |
| 610 m3 | 25.33 m | 17.76 m | 1.60 m |
| 620 m3 | 25.72 m | 17.76 m | 1.60 m |
| 630 m3 | 26.12 m | 17.76 m | 1.60 m |
| 640 m3 | 26.51 m | 17.76 m | 1.60 m |
| 650 m3 | 26.90 m | 17.76 m | 1.60 m |
| 660 m3 | 27.30 m | 17.76 m | 1.60 m |
| 670 m3 | 27.69 m | 17.76 m | 1.60 m |
| 680 m3 | 28.09 m | 17.76 m | 1.60 m |
| 690 m3 | 28.48 m | 17.76 m | 1.60 m |
From 700m³ to 999m³
| Volume | Length | Width | Height |
| 700 m3 | 26.60 m | 19.24 m | 1.60 m |
| 710 m3 | 26.96 m | 19.24 m | 1.60 m |
| 720 m3 | 27.33 m | 19.24 m | 1.60 m |
| 730 m3 | 27.69 m | 19.24 m | 1.60 m |
| 740 m3 | 28.05 m | 19.24 m | 1.60 m |
| 750 m3 | 28.41 m | 19.24 m | 1.60 m |
| 760 m3 | 28.77 m | 19.24 m | 1.60 m |
| 770 m3 | 29.13 m | 19.24 m | 1.60 m |
| 780 m3 | 29.50 m | 19.24 m | 1.60 m |
| 790 m3 | 29.86 m | 19.24 m | 1.60 m |
| 800 m3 | 30.22 m | 19.24 m | 1.60 m |
| 810 m3 | 30.58 m | 19.24 m | 1.60 m |
| 820 m3 | 30.94 m | 19.24 m | 1.60 m |
| 830 m3 | 29.02 m | 20.72 m | 1.60 m |
| 840 m3 | 29.35 m | 20.72 m | 1.60 m |
| 850 m3 | 29.69 m | 20.72 m | 1.60 m |
| 860 m3 | 30.02 m | 20.72 m | 1.60 m |
| 870 m3 | 30.36 m | 20.72 m | 1.60 m |
| 880 m3 | 30.69 m | 20.72 m | 1.60 m |
| 890 m3 | 31.02 m | 20.72 m | 1.60 m |
| 900 m3 | 31.36 m | 20.72 m | 1.60 m |
| 910 m3 | 31.69 m | 20.72 m | 1.60 m |
| 920 m3 | 32.03 m | 20.72 m | 1.60 m |
| 930 m3 | 32.36 m | 20.72 m | 1.60 m |
| 940 m3 | 32.69 m | 20.72 m | 1.60 m |
| 950 m3 | 33.03 m | 20.72 m | 1.60 m |
| 960 m3 | 33.36 m | 20.72 m | 1.60 m |
| 970 m3 | 33.70 m | 20.72 m | 1.60 m |
| 980 m3 | 34.03 m | 20.72 m | 1.60 m |
| 990 m3 | 34.37 m | 20.72 m | 1.60 m |
From 1000m³ to 2000m³
| Volume | Length | Width | Height |
| 1000 m3 | 34.70 m | 20.72 m | 1.60 m |
| 1010 m3 | 35.03 m | 20.72 m | 1.60 m |
| 1020 m3 | 35.37 m | 20.72 m | 1.60 m |
| 1030 m3 | 35.70 m | 20.72 m | 1.60 m |
| 1040 m3 | 36.04 m | 20.72 m | 1.60 m |
| 1050 m3 | 36.37 m | 20.72 m | 1.60 m |
| 1060 m3 | 36.71 m | 20.72 m | 1.60 m |
| 1070 m3 | 37.04 m | 20.72 m | 1.60 m |
| 1080 m3 | 37.37 m | 20.72 m | 1.60 m |
| 1090 m3 | 37.71 m | 20.72 m | 1.60 m |
| 1100 m3 | 27.91 m | 28.12 m | 1.60 m |
| 1110 m3 | 38.38 m | 20.72 m | 1.60 m |
| 1120 m3 | 38.71 m | 20.72 m | 1.60 m |
| 1130 m3 | 36.37 m | 22.20 m | 1.60 m |
| 1140 m3 | 36.68 m | 22.20 m | 1.60 m |
| 1150 m3 | 36.99 m | 22.20 m | 1.60 m |
| 1160 m3 | 37.30 m | 22.20 m | 1.60 m |
| 1170 m3 | 37.61 m | 22.20 m | 1.60 m |
| 1180 m3 | 37.93 m | 22.20 m | 1.60 m |
| 1190 m3 | 38.24 m | 22.20 m | 1.60 m |
| 1200 m3 | 30.33 m | 28.12 m | 1.60 m |
| 1250 m3 | 29.96 m | 29.60 m | 1.60 m |
| 1300 m3 | 31.10 m | 29.60 m | 1.60 m |
| 1350 m3 | 31.71 m | 31.08 m | 1.60 m |
| 1400 m3 | 31.80 m | 31.08 m | 1.60 m |
| 1450 m3 | 32.89 m | 31.08 m | 1.60 m |
| 1500 m3 | 33.98 m | 31.08 m | 1.60 m |
| 1550 m3 | 33.47 m | 32.56 m | 1.60 m |
| 1600 m3 | 34.51 m | 32.56 m | 1.60 m |
| 1650 m3 | 35.55 m | 32.56 m | 1.60 m |
| 1700 m3 | 34.99 m | 34.04 m | 1.60 m |
| 1800 m3 | 35.43 m | 35.52 m | 1.60 m |
| 1900 m3 | 37.33 m | 35.52 m | 1.60 m |
| 2000 m3 | 39.23 m | 35.52 m | 1.60 m |
